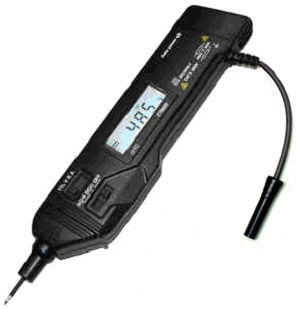

• State of the Art ergonomic design and styling for easier handling and use when compared to conventionalmultimeters
• Fully automatic range selection
• Large 3¾ digit LCD display with scale indicators
• AC/DC Voltage measurement from 1 mV to 600 Volt
• AD/DC Current measurement up to 400 mA
• Resistance measurement from 0.1 Ohm up to 2 MOhm
• Continuity test (with audible indicator)
• Logic probe function (TTL Logic)
• Display data hold
• Overload protection
• Integrated test leads

CT8022 Applications

• Measure output in sensors like Oxygen (O2), Coolant Temperature, Throttle Position (TPS), Manifold Air, Pressure (MAP), Manifold Air Flow (MAF), etc.
• Check grounds, Voltage drops and continuity across Connectors, Wires, Cables, Relays Contacts, Lamps, Switches, etc.
• Check components like Alternator, Diodes, Relays Coils, Condensers, Ignition Coils, Spark Plug Wires, Magnetic Pick-ups, Motors, Switches, Fuses, etc.
• An essential tool for all around troubleshooting of electrical and electronic circuit and systems.

For use in:

• Automobiles
• Trucks
• Trailers
• Boats
• RVs
• 0 to 600 Volt AC/ DC powered circuits.

Technical Specifications :

General Specifications:

Display:

• 3¾ Digit LCD (Max reading 3999)
• 0.3" (9 mm) Digits
• Logic probe status indicators
• Automatic( - ) negative polarity indicator o Automatic Zeroing
• Automatic over-range indication
• Low battery indicator

• Power source: Standard 9 Volt alkaline battery type Duracell MN1604
• Physical dimensions: 9” (L) x 1.57” (H) x 1.18” (D) - 230 (L) x 40 (H) x 30 (D) mm
• Weight: Approximately 5.8 Oz ( 165 g) Including battery

Electrical Specifications:

• DC Voltage: ±0.8% + 1dgts., 10MOhm input impedance, 600 V ac/dc Overload protection
• AC Voltage: ±1.2% + 3 dgts., 10MOhm input impedance, 40 to 400 Hz, 600 V ac/dc Overload protection
• DC Current: ± 1.2 % + 3 dgts., Internal 400mA/250V fuse protection
• AC Current: ± 1.2 % + 5 dgts., Internal 400mA/250V fuse protection
• Resistance: ±1.0% + 3 dgts., 250 V ac/dc overload protection
• Logic Probe: >2 Volt displays 'Hi', <0.8 Volt displays 'Lo'. Input protected up to 250 Volt for > 10 Sec.
• Diode test: 1.0 ± 0.6 mA test current, 3.2 V max. test voltage
